DMR vault pedal bearings

Vault Bearings

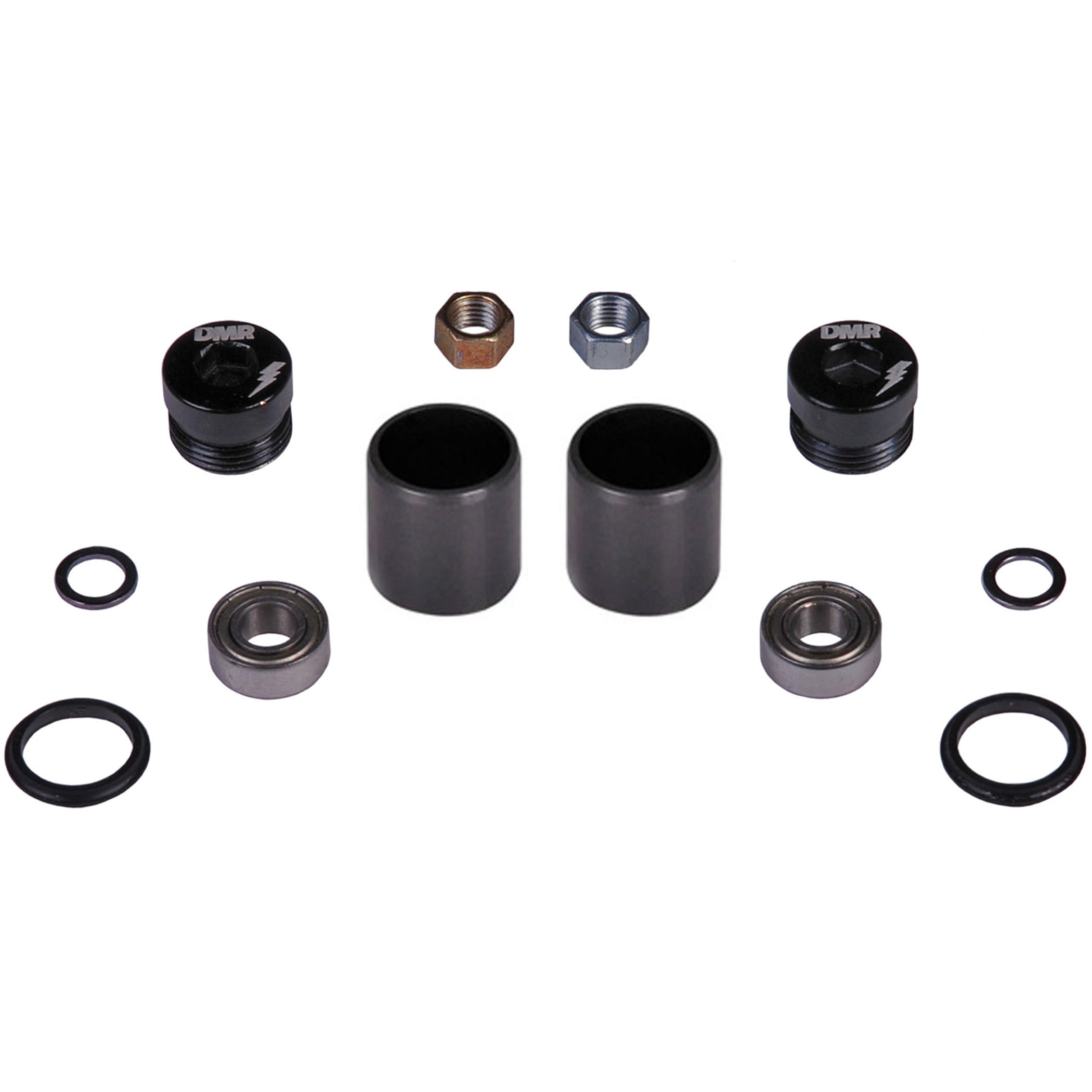

DMR Vault Pedal Service Kit includes

2x Sealed bearing number: 686ZZ - 6mm Ø ID (Internal Diameter) 13mm Ø OD (Over All Diameter) 5mm Width

2x Plain bearing (bushing) 12mm Ø ID (Internal Diameter) 14mm Ø OD (Over All Diameter) 12mm Width

Nuts:
1x M6x0.75 5 deep right hand thread (left hand pedal) (to be fitted with a 8mm socket)
1x M6x0.75 5 deep left hand thread (right hand pedal) (to be fitted with a 8mm socket)

2x End cap: M14x1x11

2x Washer: 6mm Ø ID (Internal Diameter) 9mm Ø OD (Over All Diameter) 1mm Width

2x Internal Rubber Seals

Description Price Due In Quantity
DMR - Vault Pedal service Kit - Pair 10/05 Price: £20.83
