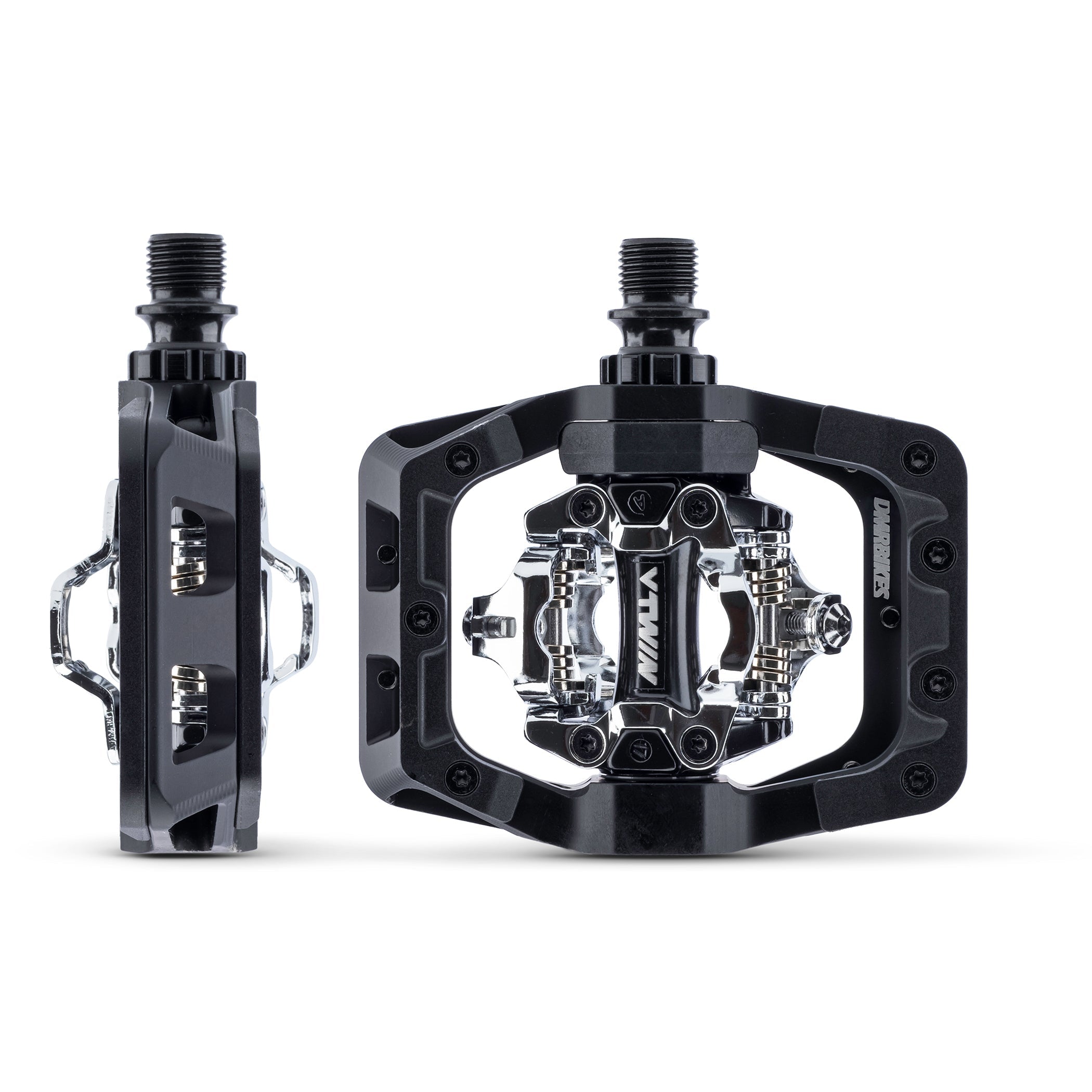

Based around the world renowned SPD technology, we have engineered the most adaptable caged-clip system on the market.

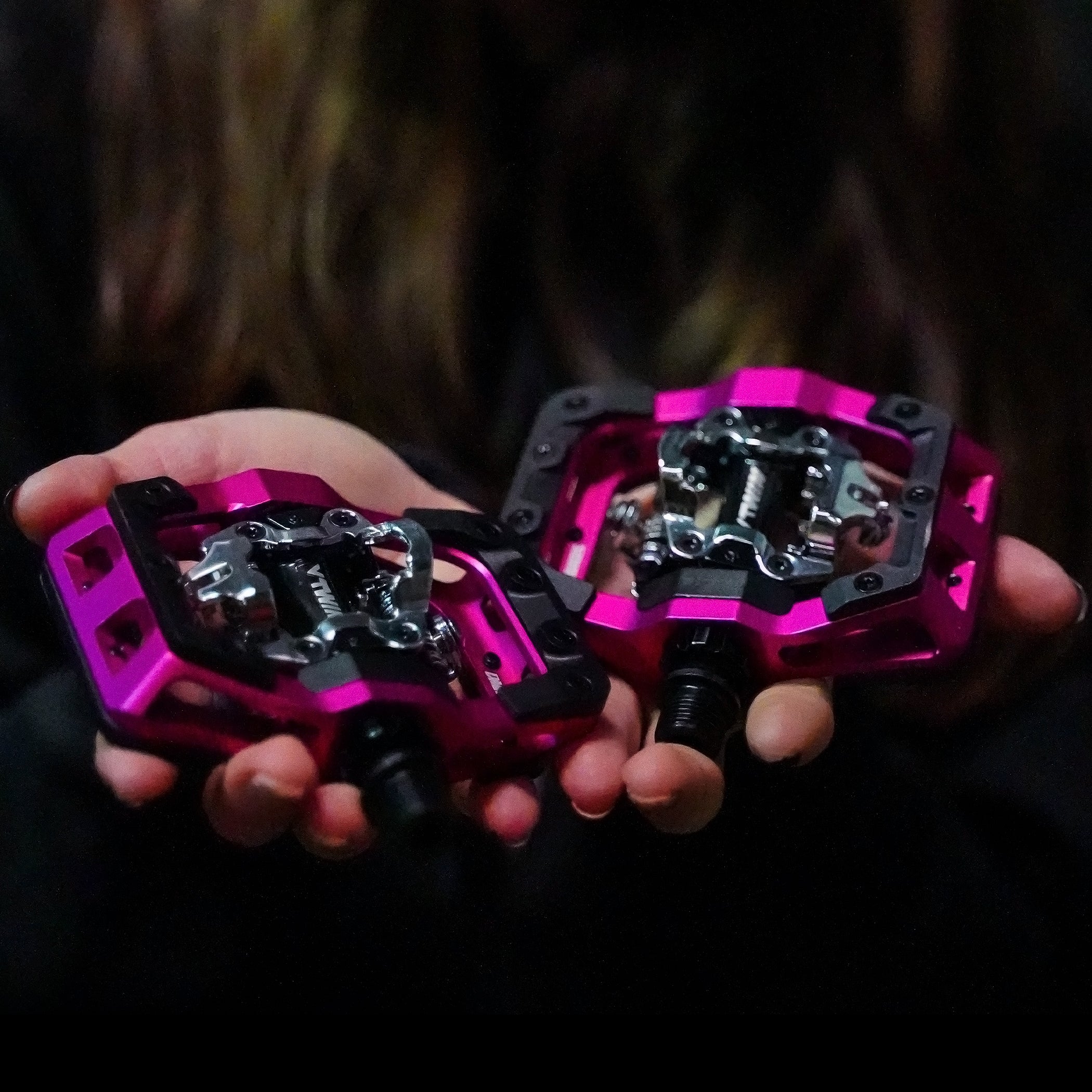

The DMR V-Twin mtb clipless pedal offers a huge number of different grip and feel options.
Using our range of pins paired with a unique Nylon “bumper” and Metal Shim feature, this SPD clip in pedal can be customised to optimise your float and preferences and improve your ride experience. A great mountain bike pedal.

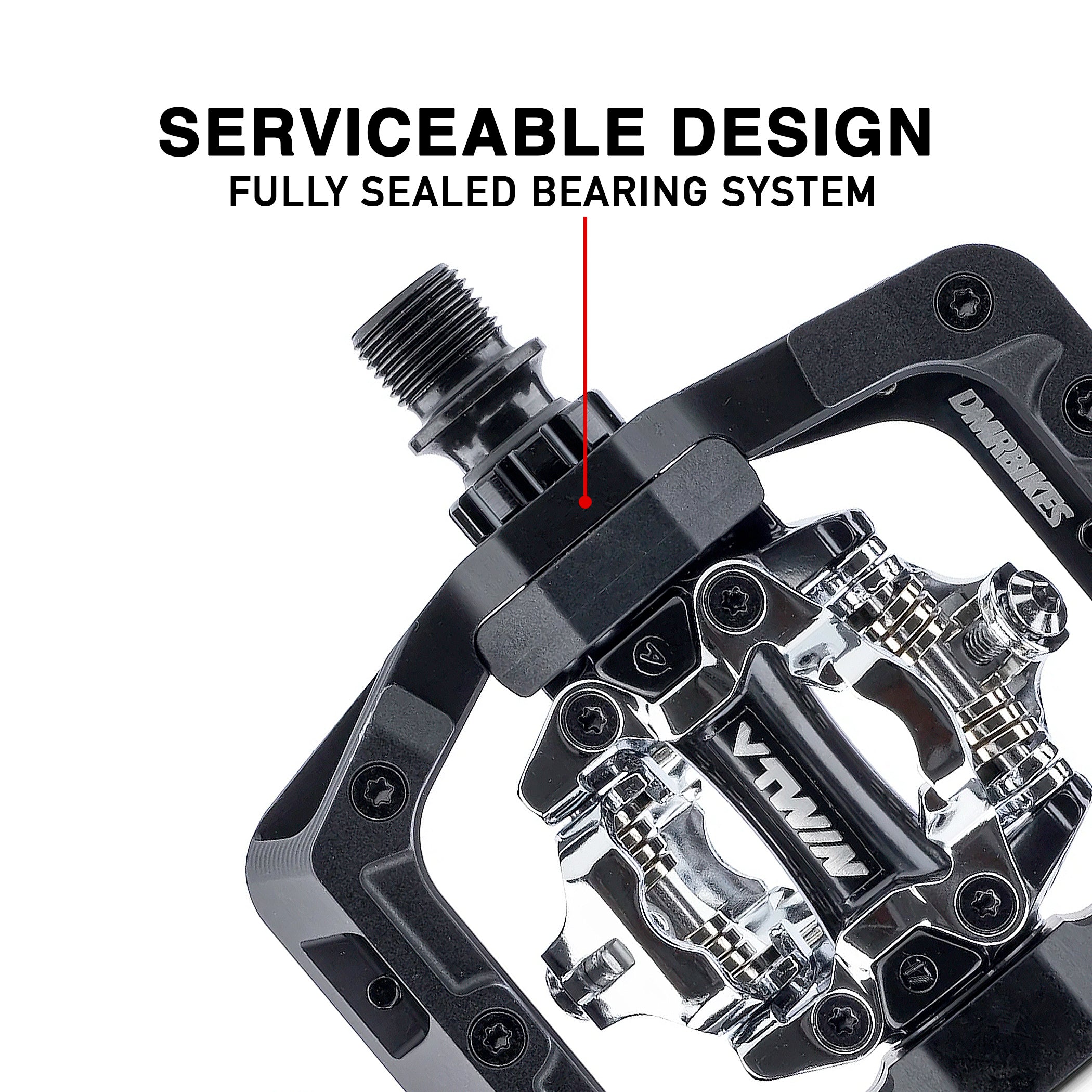

An extruded and CNC machined custom DMR Alloy cage with fully sealed (fully serviceable) bearing system allows the V-Twin mtb clipless pedal to take seasons of abuse in the toughest of environments whilst maintaining a low weight.

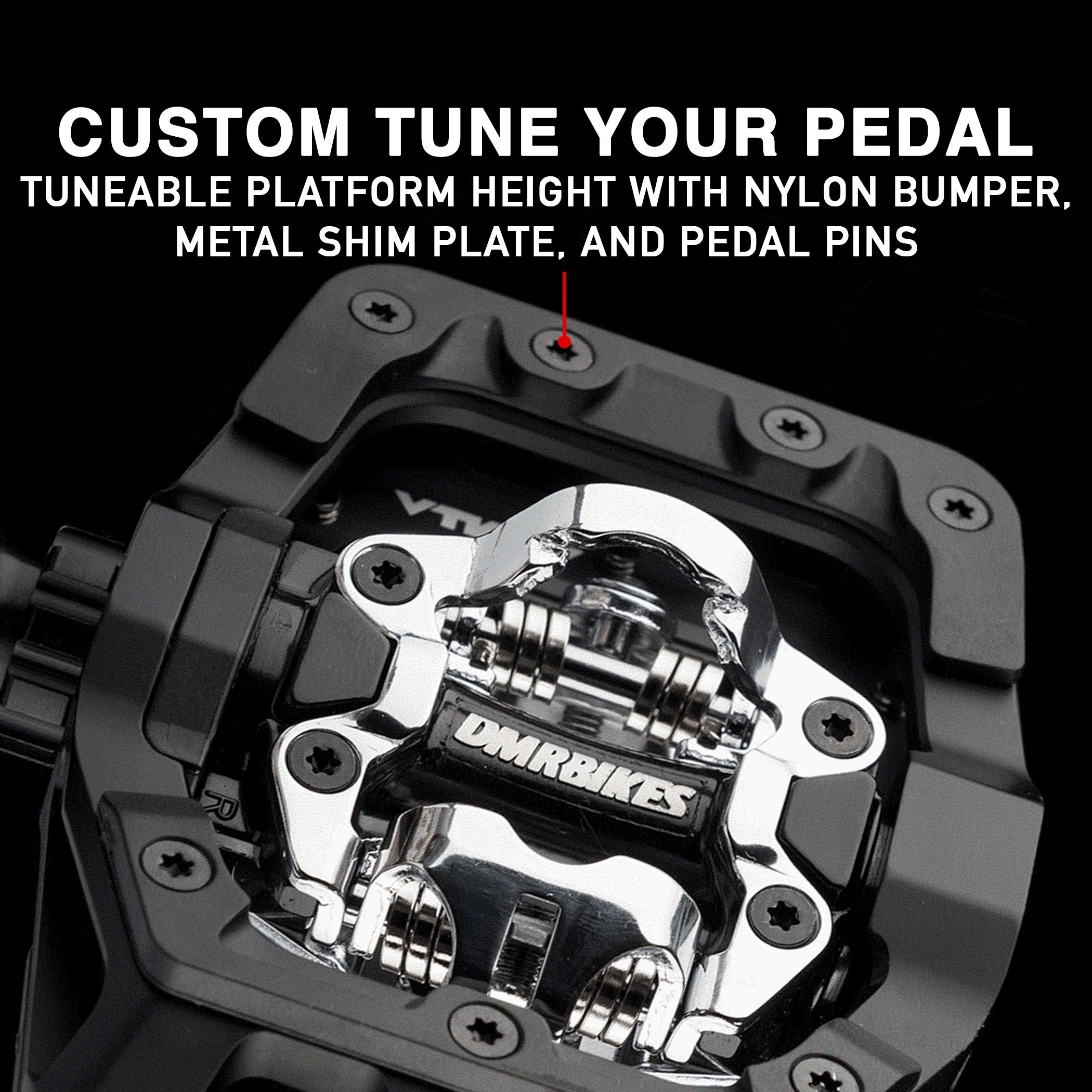

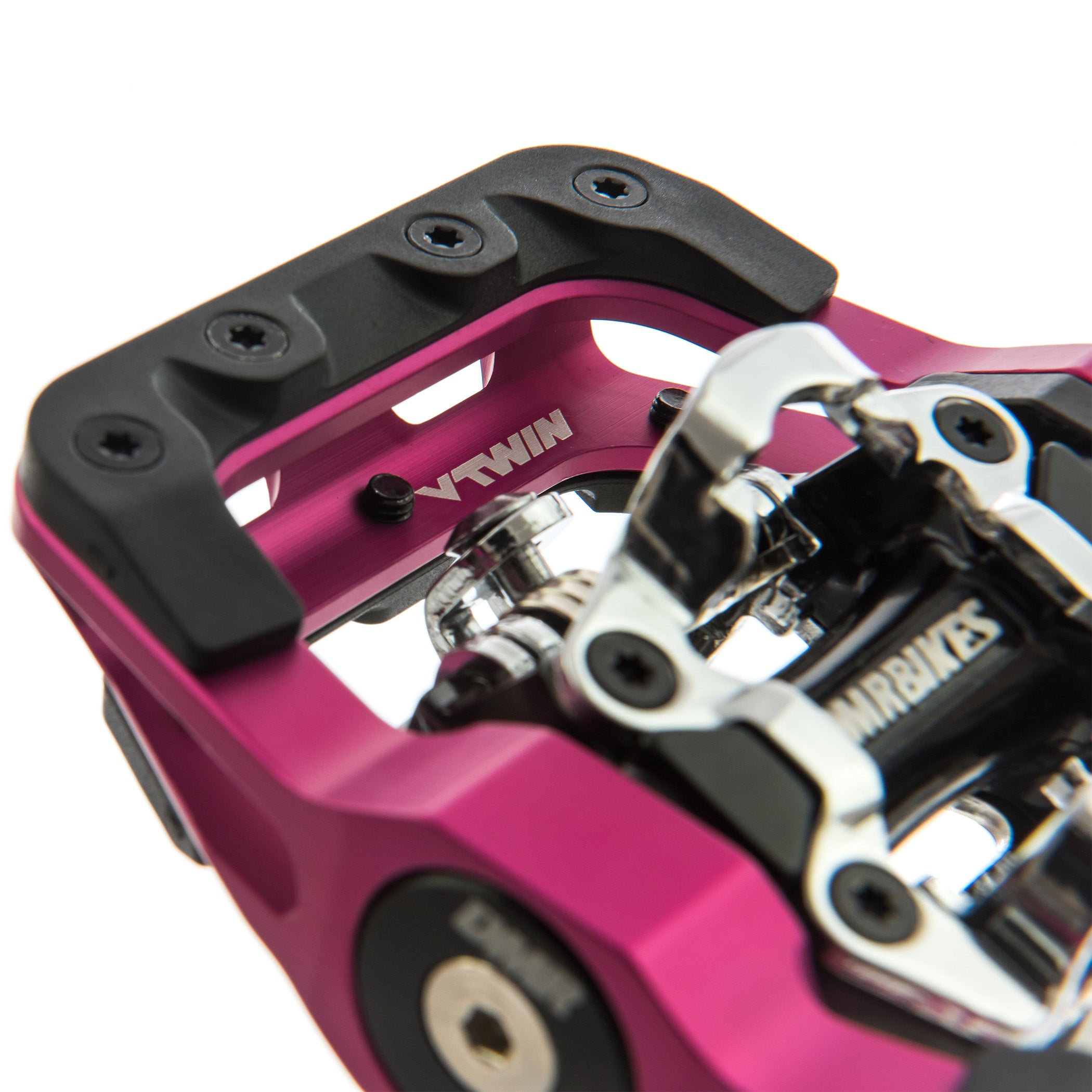

Tuneable platform height with Nylon Bumper, Metal Shim plate, foot pegs.

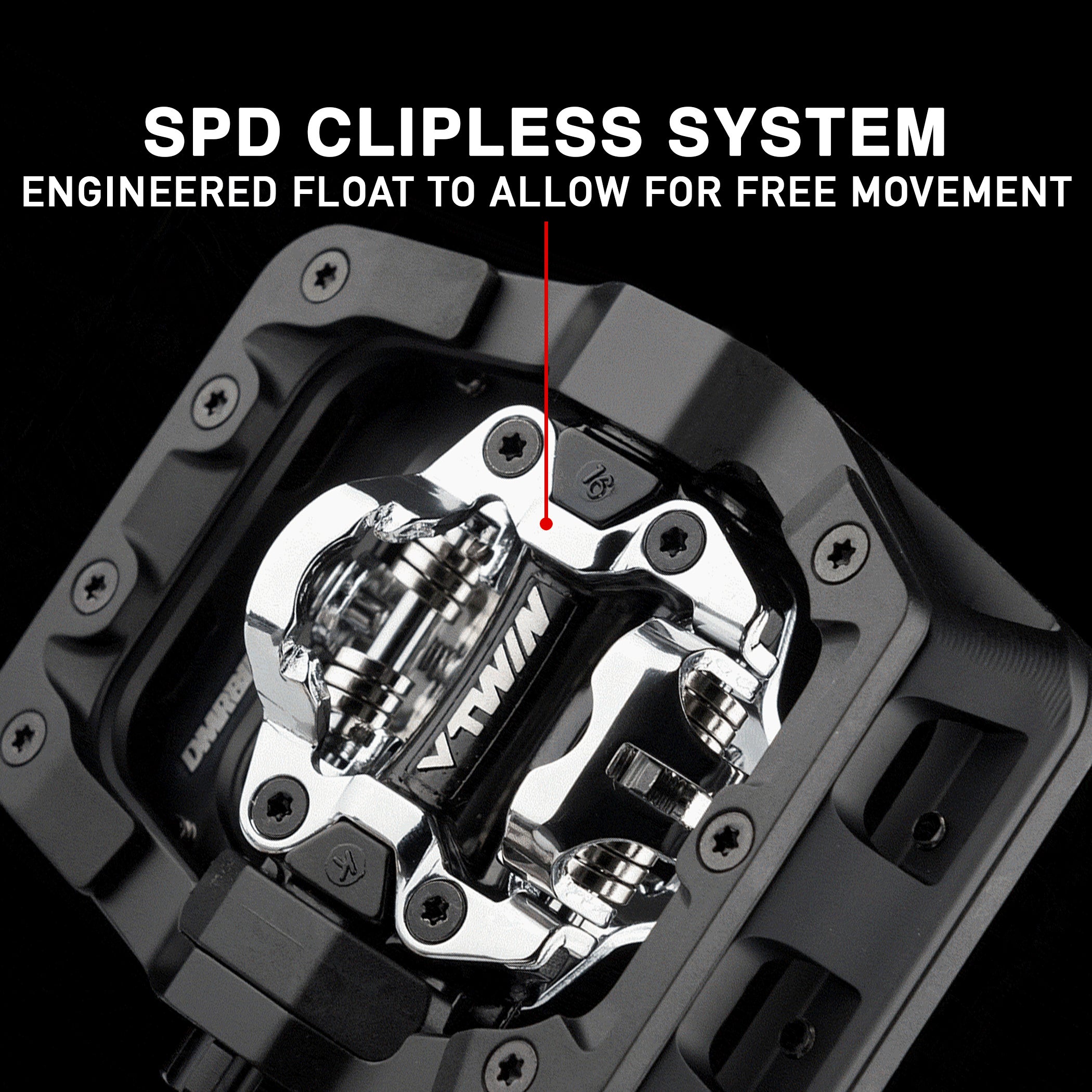

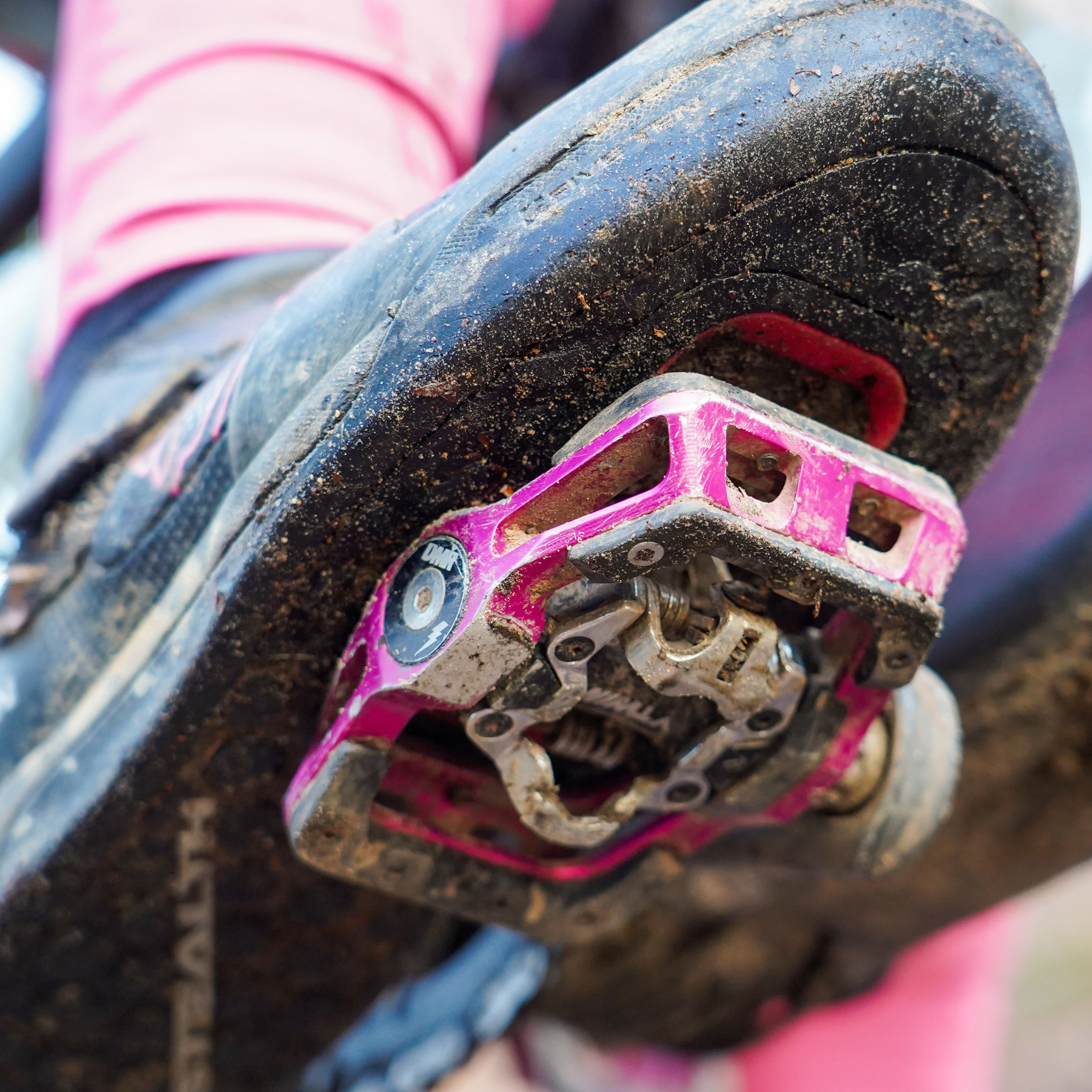

Similar to other clipless pedals using this system, the DMR V TWIN has an engineered float to allow for free movement of the cage from the cleat during adverse UK weather conditions.’
• Large Platform Area
• SPD compatible design
• Nylon ‘Bumper’ design
• Steel sizing-shim set included
• Weight 546g as a Pair
• Serviceable Bearing system
• 7 Tuneable Pins Per Side (full set supplied)
• Heavy Duty 4140 Cro.Mo Steel Axles
• Tough Extruded Aluminium Body, CNC machined

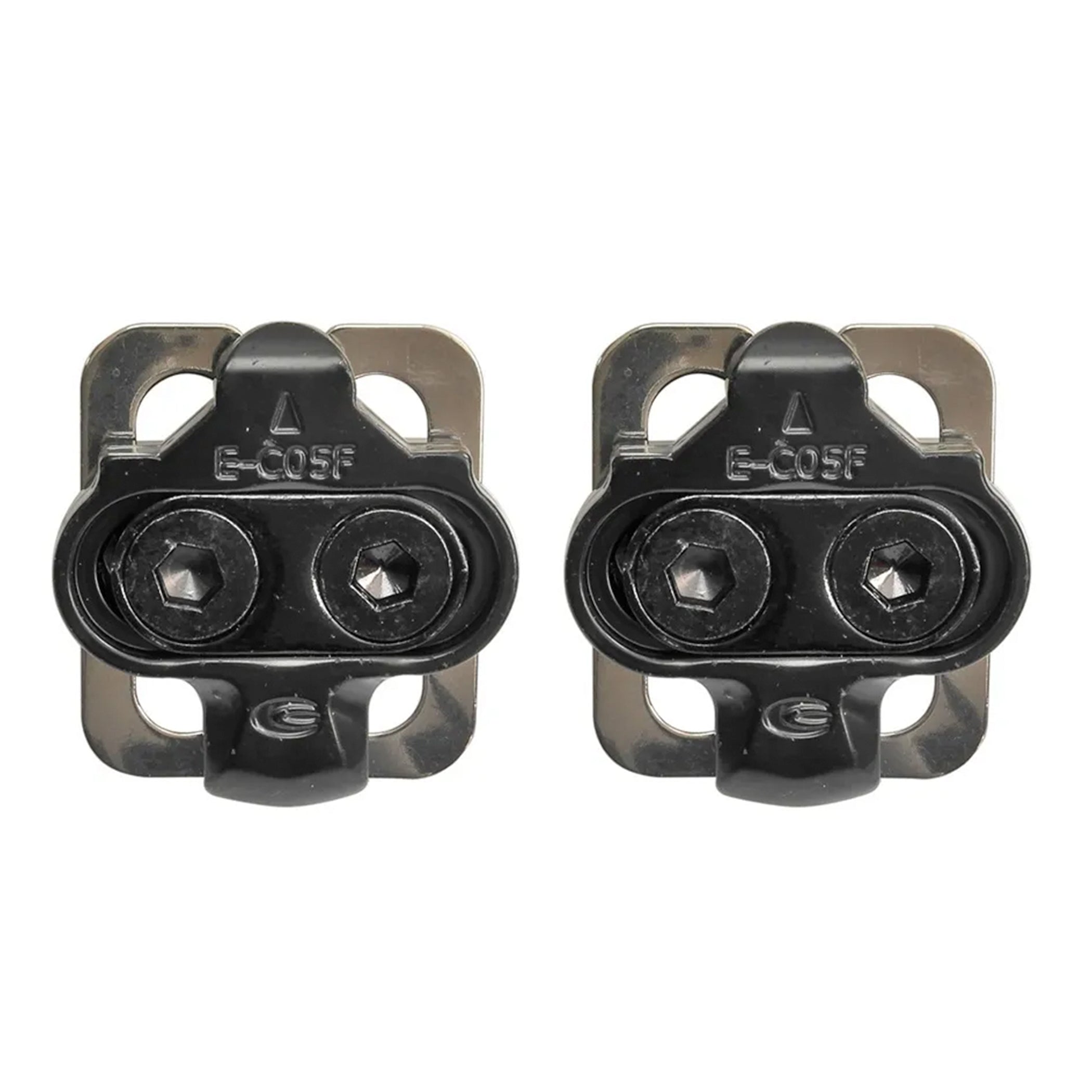

• 5º float cleat set supplied
• Anodised coloured finish.

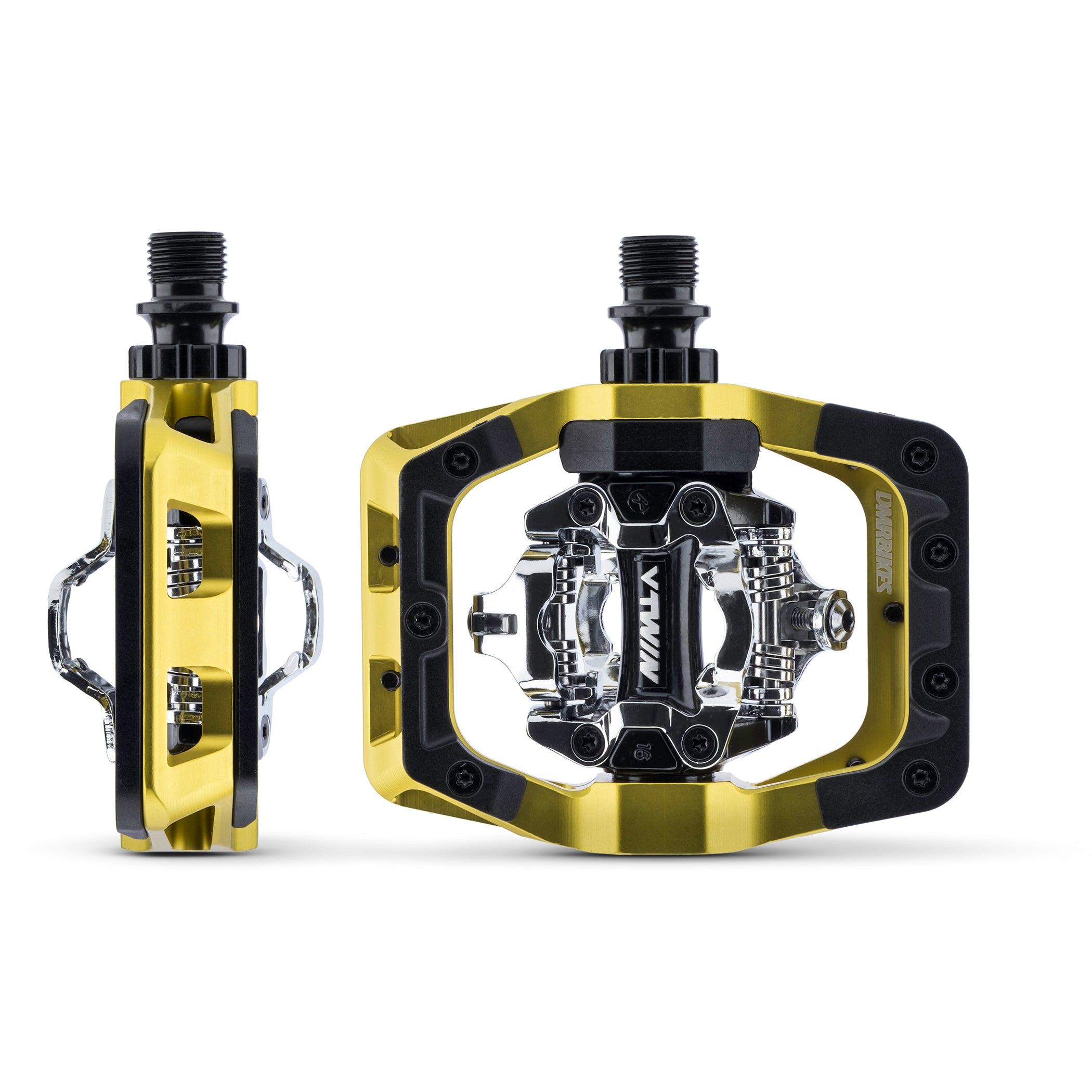

Dimensions
Full Pedal incl. Axle: 112mm x 116mm.
Platform: 81mm x 97mm.

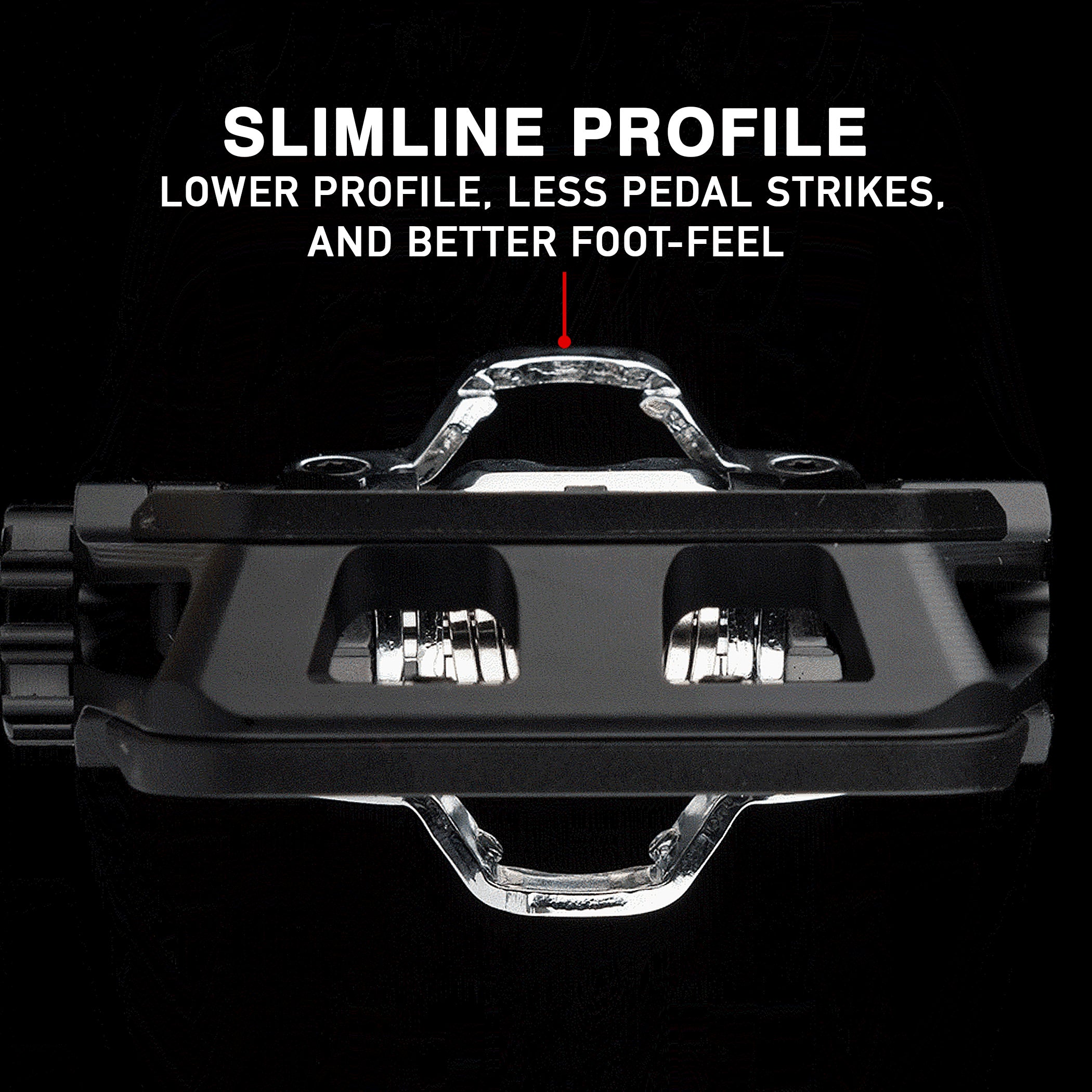

Pedal Depth: 14mm.
Bumper to Bumper Depth: 23mm (Without Shims).
NB Torque setting at the Axle to Crank, for all the DMR Bikes pedal range, is 40 - 55Nm.
Fitting instructions please click here
Setup guide please click here
The V-TWIN Pedals use the Vault Flippins

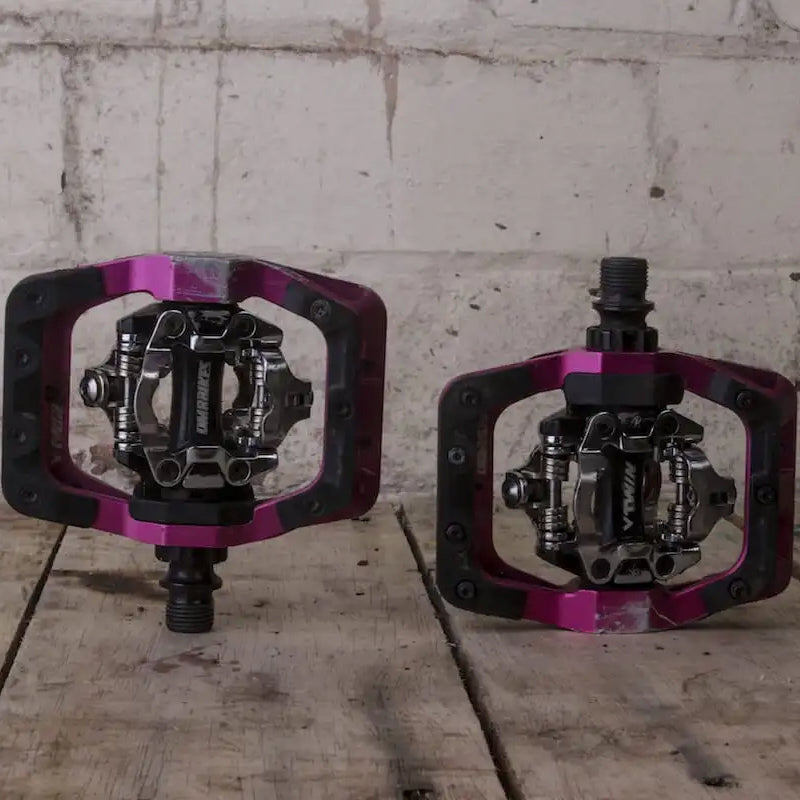

Review Submission by Stuart Rathbone - May 2020
"Had an issue with damaged end float nuts. I rounded the hexagon. I feel the material is a bit soft, but it could be me. Sent them off to DMR
without the end caps and springs after speaking to them via the live chat. They extracted the chewed up nuts replaced them (and a service
kit I think, though I had already done that), fitted new end caps and springs and sent them back to me completely ready to fit on my bike. All
FOC other than my postage cost to them. Fab Service."
OFF-ROAD CC
"If you're a serious downhill or enduro rider and want the support and feel of a flat pedal with the benefits of a clipless setup, it's one of the best".
They're supportive, tuneable, work really well and there's an endless rainbow of colours for you to choose from too.
Full Article Here
DESIGN & INNOVATION AWARD 2017
"Pedals are crucial contact points between bike and rider, but there’s been little revolution in this field for many years.
So while the new V-Twin clipless pedals from DMR admittedly still rely on the proven SPD standard, they have trodden a new path in terms of versatility:
not only can you change the number, position and length of the (optional) pins, you can also switch the thickness of the plastic plates on the pedal body.
Currently, each pedal comes with pre-selected plates, but in the future you’ll be able to customize the layout, thickness and colour scheme of your V-Twin pedals then, via a download link, use a 3D printer to make them yourself.
In the standard set-up, the pedals felt secure, functioned well when clipping in and out and the ample proportions proved a the perfect platform."
ARTICLE HERE
